TREK X-CALIBER 8 17.5 29 GY

Specifications

• Frameset

  Frame

  Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, G2 Geometry

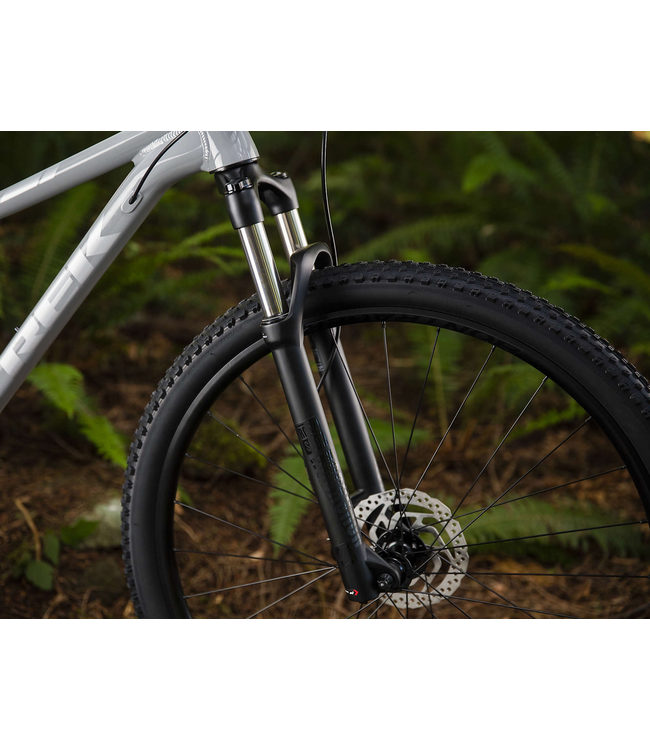

  Fork

  RockShox 30 Silver, Solo Air, rebound adjust, TurnKey hydraulic lockout, tapered steerer, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)

• Wheels

  Front hub

  Formula DC20 LW alloy



  Rear hub

  Formula DC2241, Boost141

  Rims

  Bontrager Kovee 28-hole Tubeless Ready, tubeless rim strips and valves sold separately

  Tires

  Bontrager XR2, 29x2.20˝ (13.5 & 15.5: 27.5x2.20˝)

• Drivetrain

  Shifters

  Shimano Deore M6000, 10 speed

  Front derailleur

  Shimano Deore M617

  Rear derailleur

  Shimano Deore XT M781, Shadow

  Crank

  Race Face Ride, 36/22

  Bottom bracket

  Shimano BB52, 73mm

  Cassette

  Shimano HG50, 11-36, 10 speed

  Chain

  KMC X10

  Pedals

  VP-536 nylon platform

• Components

  Saddle

  Bontrager Arvada

  Seatpost

  Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset

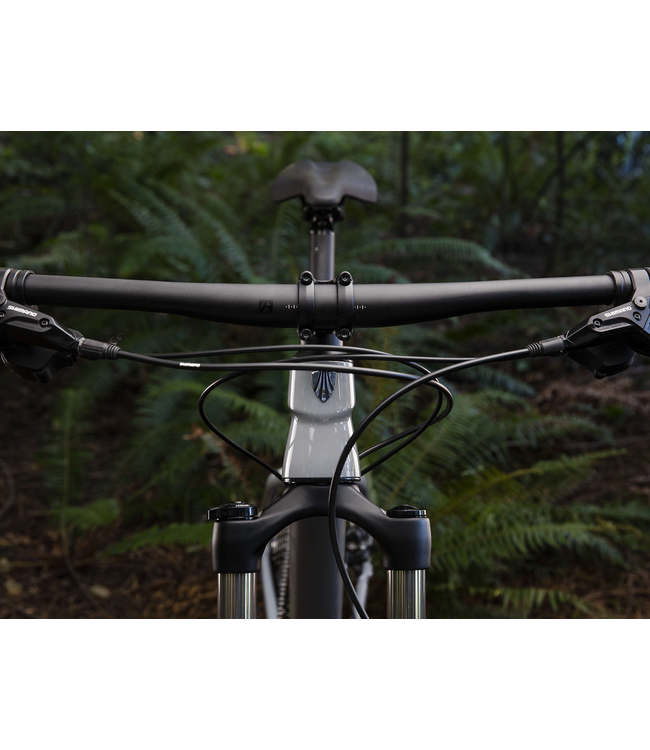

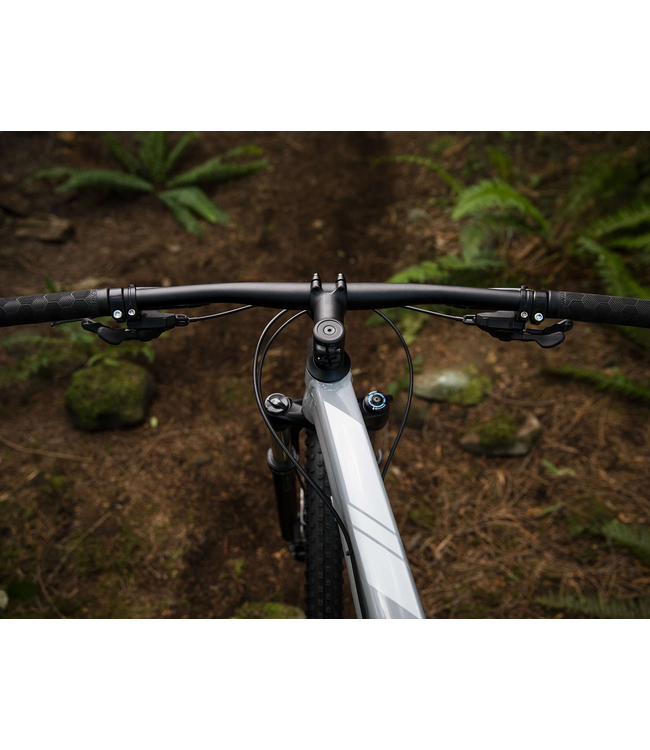

  Handlebar

  Bontrager alloy, 31.8mm, 5mm rise, 720mm width (13.5: 690mm width)

  Grips

  Bontrager XR Trail Comp, nylon lock-on

  Stem

  Bontrager Elite, 31.8mm, 7 degree, Blendr compatible

  Brakeset

  Shimano MT200 hydraulic disc

  Headset

  Semi-integrated, cartridge, 1-1/8˝ top, 1.5˝ bottom

• Weight

  Weight

  M - 13.43 kg / 29.6 lbs (with tubes)

  Weight limit

  This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
